Problem: INC0794075 - XMBILLING process is very slow in recent days

Dostałem od Użytkownika informację że zapisy do danych nie działają optymalnie jest bardzo mała przepustowość i kolejka zaległości rośnie. Informacje zawarte w INC

While reviewing the dashboard https://app.eu0.signalfx.com/#/dashboard/HCvOOb9AIAM?groupId=HAX-r3yAIAU&configId=HCvOOb9AIAQ&density=2&startTime=-12h&endTime=Now I noticed that the xmlbilling process, which transfers data from 10.146.11.194 (XMLBILLING database) to 10.146.11.103 (AboSystem_CH and AboSystem_DNB databases), is performing very slowly. Its current peak processing speed is approximately 30 times lower than the average expected speed. Could you please investigate this issue from the database side?

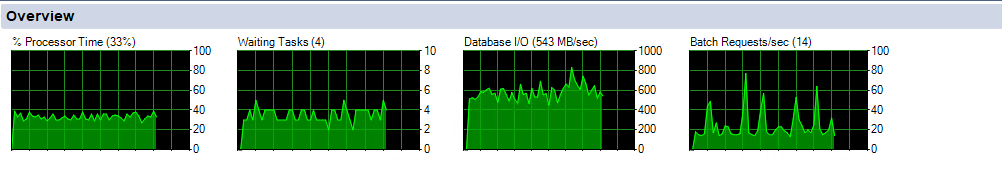

Niestety obciążenie bazy danych i sesji nie wskazywało na problem bezpośrednio z tym że coś na instancji nie są poprawnie ustawione, system utylizował zaledwie 40% swojej mocy, a sesji w bazie było zaledwie kilkadziesiąt, batch requestów było na poziomie 80 max.

W trakcie analizy nie zidentyfikowałem żadnej sesji która wy próbowała wstawić dane do bazy. Zdiagnozowałem jednak że aplikacja uruchamia to zapytanie

select ol1_0.TransactionNo,ol1_0.AccessType, ol1_0.Amount,ol1_0.AmountIncludingVAT,ol1_0.BID, ol1_0.BillToCustomerNo,ol1_0.BookingDate,ol1_0.CampaignNo, ol1_0.Description,ol1_0.GlobalUsageID,ol1_0.LineDiscount, ol1_0.LineDiscountAmount,ol1_0.MasterSubscriptionNo, ol1_0.OrderDate,ol1_0.OrderLineNo,ol1_0.OrderNo, ol1_0.PricelistCode,ol1_0.ProductCode, ol1_0.Quantity,ol1_0.QuantityInvoiced,ol1_0.QuantityShipped, ol1_0.QuantityShippedNotInvoiced, ol1_0.QuantityToInvoice, ol1_0.QuantityToShip, ol1_0.SellToCustomerNo, ol1_0.ShipToCustomerNo, ol1_0.ShipmentDate, ol1_0.ShipmentNo, ol1_0.ShippedNotInvoiced,ol1_0.SubjectCity, ol1_0.SubjectCountryCode,ol1_0.SubjectName, ol1_0.SubjectNo,ol1_0.SubjectSupplierCountryCode, ol1_0.SubjectUserId,ol1_0.SubscriptionNo, ol1_0.UnitCost,ol1_0.UnitOfMeasure,ol1_0.UnitPrice,ol1_0.VAT from XML_SubscriptionOrderLine ol1_0 -- where ol1_0.OrderLineNo= @P0

Po analizie kodu aplikacji aplkikacja zanim wstawi dane musi pobrać dane które wykonuje wczesniej opisane zapytanie co dawało wiele wait typu PAGEOLATCH jak wskazałem na screenach poniżej

Wskazuje to jednoznacznie że zapytanie działa nieoptymalnie. Plan zapytania zanim wstawi dane musi zeskanować ponad 200 mln recordów co pokazuje poniższy rysunek

Jednoznacznie brakuje na tej tabeli indeksu który jest poniżej.

USE [AboSystem_xx] GO CREATE NONCLUSTERED INDEX [idx_tmp_XML_SubscriptionOrderLine] ON [dbo].[XML_SubscriptionOrderLine] ([OrderLineNo])

Po symulacji i sprawdzeniu założyłem indeks na koluminie OrderLineNo. Po tym zabiegu zapytanie bezpośrednio sięga do rekordu w bazie i koszt zapytania spadł drastycznie co pokazuje plan poniżej.

Po uruchomieniu aplikacji całość przyśpieszyła o kilka tysięcy procent co pokazuje poniższy rysunek

]]

Kolejka wszystkich zapytań skończyła się do 19:00 zamiast po 4 dniach.

ENG RCA

Poniżej masz przeredagowaną, spójną i profesjonalną wersję w języku angielskim, gotową do użycia w INC / RCA / mailu technicznym. Zachowałem sens techniczny, ale poprawiłem styl i klarowność.

Incident Description and Root Cause Analysis

I received information from the user that data write operations were not performing optimally. The system throughput was very low, and the backlog queue was continuously increasing.

The details were described in the incident (INC).

Initial Observations

While reviewing the monitoring dashboard:
https://app.eu0.signalfx.com/#/dashboard/HCvOOb9AIAM?groupId=HAX-r3yAIAU&configId=HCvOOb9AIAQ&density=2&startTime=-12h&endTime=Now

I noticed that the xmlbilling process, responsible for transferring data from:

10.146.11.194 (XMLBILLING database)
to
10.146.11.103 (AboSystem_CH and AboSystem_DNB databases),

was performing significantly slower than expected.

The current peak processing speed was approximately 30 times lower than the normal average throughput.
As a result, I was asked to investigate the issue from the database perspective.

Database Health Check

Unfortunately, the database instance itself did not indicate any direct configuration or resource issues:

CPU utilization was only around 40%
The number of active database sessions was relatively low (only several dozen)
Batch requests peaked at approximately 80

This indicated that the instance was far from resource saturation and the problem was unlikely to be caused by general database load.

Query-Level Analysis

During the analysis, I did not identify any active sessions inserting data into the target database.

However, I discovered that the application was repeatedly executing the following SQL query:

SELECT
    ol1_0.TransactionNo,
    ol1_0.AccessType,
    ol1_0.Amount,
    ol1_0.AmountIncludingVAT,
    ol1_0.BID,
    ol1_0.BillToCustomerNo,
    ol1_0.BookingDate,
    ol1_0.CampaignNo,
    ol1_0.Description,
    ol1_0.GlobalUsageID,
    ol1_0.LineDiscount,
    ol1_0.LineDiscountAmount,
    ol1_0.MasterSubscriptionNo,
    ol1_0.OrderDate,
    ol1_0.OrderLineNo,
    ol1_0.OrderNo,
    ol1_0.PricelistCode,
    ol1_0.ProductCode,
    ol1_0.Quantity,
    ol1_0.QuantityInvoiced,
    ol1_0.QuantityShipped,
    ol1_0.QuantityShippedNotInvoiced,
    ol1_0.QuantityToInvoice,
    ol1_0.QuantityToShip,
    ol1_0.SellToCustomerNo,
    ol1_0.ShipToCustomerNo,
    ol1_0.ShipmentDate,
    ol1_0.ShipmentNo,
    ol1_0.ShippedNotInvoiced,
    ol1_0.SubjectCity,
    ol1_0.SubjectCountryCode,
    ol1_0.SubjectName,
    ol1_0.SubjectNo,
    ol1_0.SubjectSupplierCountryCode,
    ol1_0.SubjectUserId,
    ol1_0.SubscriptionNo,
    ol1_0.UnitCost,
    ol1_0.UnitOfMeasure,
    ol1_0.UnitPrice,
    ol1_0.VAT
FROM dbo.XML_SubscriptionOrderLine ol1_0
-- WHERE ol1_0.OrderLineNo = @P0

Root Cause Identified

After reviewing the application logic, I confirmed that before inserting any data, the application was first reading data using the query shown above.

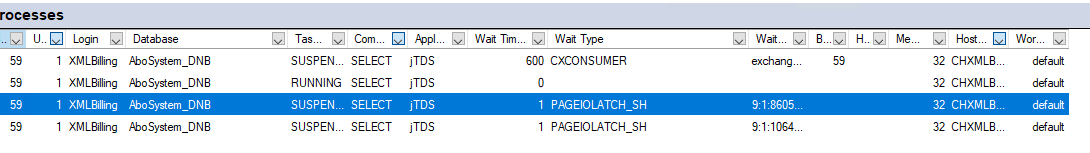

This query caused significant PAGEIOLATCH waits, as shown in the screenshots below:

This clearly indicated that the query was not optimized.

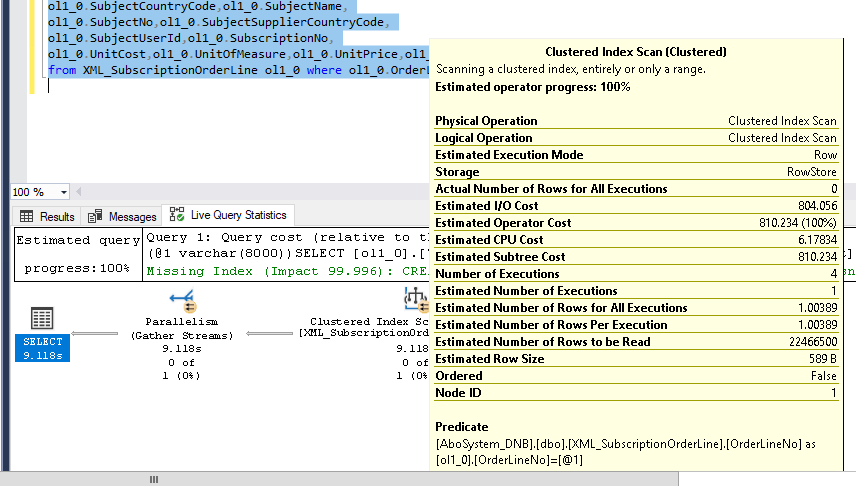

Further analysis of the execution plan revealed that:

The query was performing a full scan of more than 200 million records
This resulted in excessive I/O and severely degraded performance

Resolution

The root cause was identified as a missing index on the XML_SubscriptionOrderLine table.

The following index was required but did not exist:

USE [AboSystem_xx];
GO

CREATE NONCLUSTERED INDEX idx_tmp_XML_SubscriptionOrderLine
ON dbo.XML_SubscriptionOrderLine (OrderLineNo);
GO

After simulating the change and validating the execution plan, the index was created on the OrderLineNo column.

As a result:

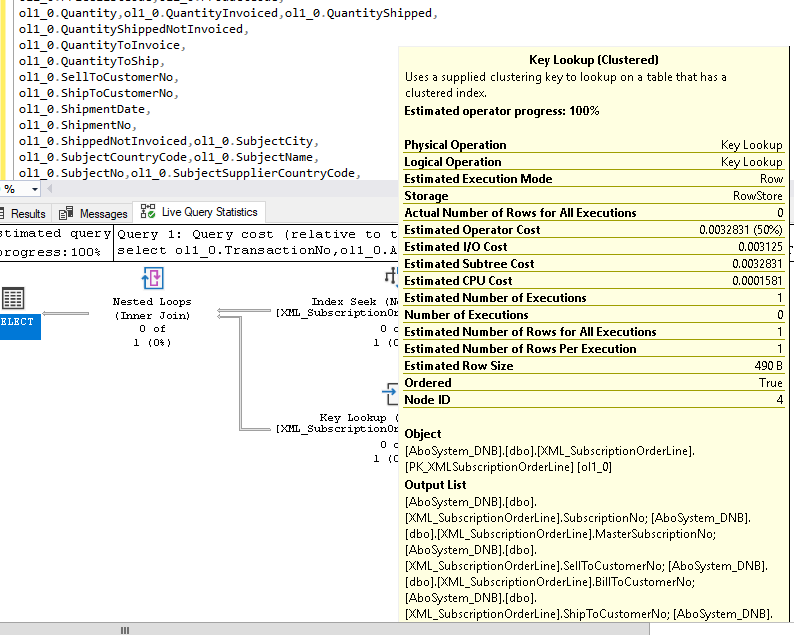

The query started performing index seeks instead of full table scans
The query cost was reduced drastically, as shown below:

Result After Fix

After restarting the application, the overall system performance improved dramatically:

Processing speed increased by several thousand percent
The backlog queue was fully processed by 19:00
Without the fix, completion was estimated to take approximately 4 days

Summary

The performance issue was caused by a missing nonclustered index, which forced the application to perform full scans on a very large table before insert operations.
Once the index was added, database access became efficient, the application throughput returned to normal, and the backlog was cleared within hours.
